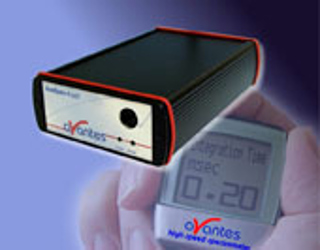

AvaSpec FAST Series - Ultra-fast Spectrometers for Laser and Other High Speed Applications
AvaSpec FAST Series: Technical Data and Ordering Information
Or Contact Avantes regarding your application or to request a quote for AvaSpec FAST Series – Ultra-fast Spectrometers for Laser and Other High Speed Applications. The AvaSpec FAST Series will be offered in several standard configurations. The initial four configurations released are as follows:
FAST Series Model | Min Integration Time | Pixels | Resolution (slit and grating dependent) |
AvaSpec-1650F- |
0.85 ms | 1650 | Up to 0.05 nm (FWHM) |
AvaSpec-1350F- |
0.70 ms | 1350 | Up to 0.05 nm (FWHM) |
AvaSpec-950F- |
0.50 ms | 950 | Up to 0.06 nm (FWHM) |
AvaSpec-350F- |
0.20 ms | 350 | Up to 0.06 nm (FWHM) |
The ultra-fast integration times supported by the FAST Series also require ultra-fast data storage capability which Avantes delivers through our unique Store to onboard RAM capability. Using our Store to Ram capability the FAST Series is able to store up 5637 spectra on board in real time depending upon the chosen configuration. For all models, start/stop pixels can be set in our software to increase the number of scans stored on board over a shorter wavelength.
The FAST Series is typically configured in CR (continuous run) mode in which a single external trigger results in a continuous scan of spectra up to the user-defined number of scans but can also be configure in SS (single scan) mode in which a single spectrum is acquired per external trigger.
Click Here To Download:AvaSpec FAST Series: Technical Data and Ordering Information
